Model No: ES710-R0/R1/R2/R3

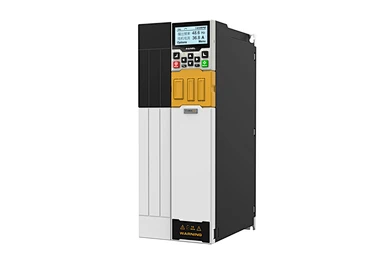

ES710 High performance industry Variable frequency Drive
ES710 （asynchronous、permanent magnet synchronous motor）
220V 3PH 0.4-18.5kW
380V 3PH 0.75-37kW

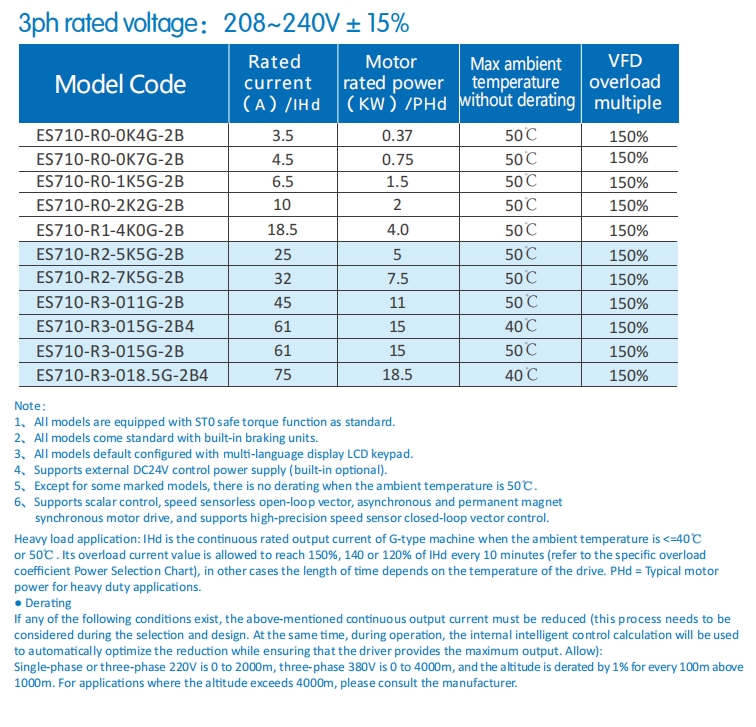

220V 3PH 0.4-18.5kW

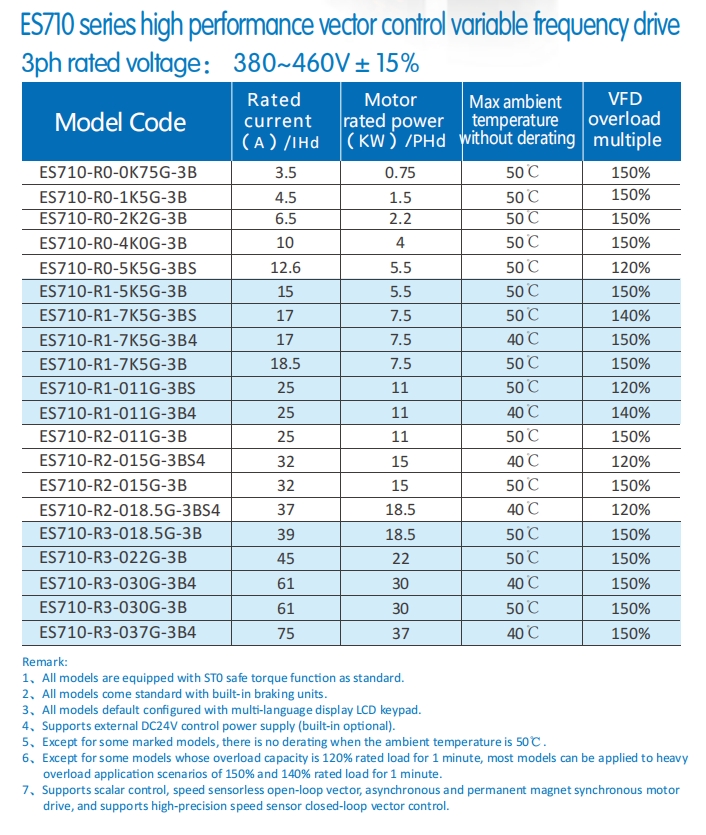

380V 3PH 0.75-37kW
minimum order :
10 cartons
Quantity :
Targetmarket
Lifting and hoist 、Shipbuilding 、Automobile manufacturing 、Ceramic equipment 、textile machinery 、Chemical fiber machinery、
Slitting equipment 、Air flotation motor 、Magnetic levitation motor 、Direct drive motor 、Drum motor 、Flywheel energy storage
Rotary cutting machine 、Wire drawing machine 、CNC machine Dyeing and finishing equipment 、Logistics equipment 、
Woodworking machinery 、Food and Beverage 、centrifuge 、compressoretc.
Performance
1）High reliability
2）High ease of use
3） Scalar control, SVC and FVC vector control
4） Compatible with permanent magnet synchronous and three-phase asynchronous motor drives
5） Standard intelligent LCD keyboard
6）Modular and compact structural design
7）Supporting multiple industrial fieldbuses
8）Standard STO safety torque function
9）Support multiple encoders to achieve high-performance and high-precision control
10）External 24V power supply optional card, allowing for parameter setting and communication debugging without high-voltage power supply
