Model No: ES610-R0-0K75G-3B
Es610PV Solar Pump Frequency Inverter VFD Hybrid MPPT Irrigation Drive 380V 18.5kw
ES610 asynchronous、permanent magnet synchronous motor

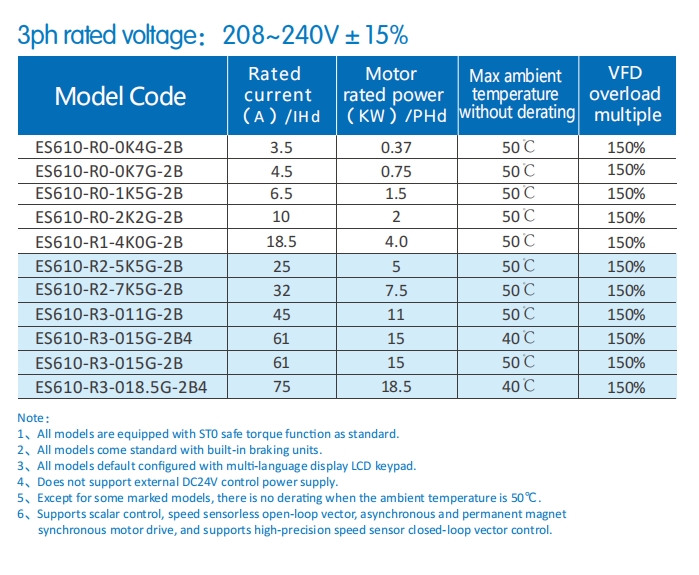

220V 3PH 0.4-18.5kW

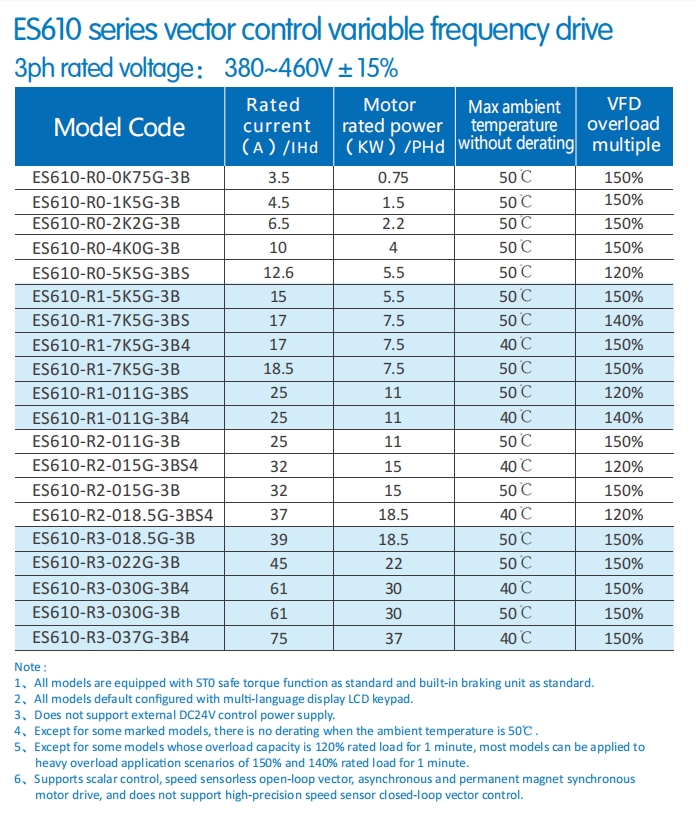

380V 3PH 0.75-37kW
220V 3PH 0.4-18.5kW
380V 3PH 0.75-37kW
Quantity :
arget market
Ceramic equipment、textile machinery、Air flotation motor、Magnetic levitation motor、Woodworking machinery、Glass machinery、Logistics warehousing、
Food and Beverage、Squeezing equipment、Rubber and plastic machinery、Wire drawing machine、Belt conveyor、centrifuge、compressor、compressor、Fan、water pump
Performance
1）High reliability;
2) High ease of use ;
3) Compatible with permanent magnet synchronous and three-phase asynchronous motor drives;
3) Compatible with permanent magnet synchronous and three-phase asynchronous motor drives;
4）Standard smart LCD keyboard;
5) Full series of book-type designs, saving installation space；
6) Innovative air duct design, full range of DC fans for heat dissipation, safe and reliable；
7）Software and hardware modular design supports strong expansion capabilities；
8)The whole machine has three-proof design and PCBA is sprayed with three-proof paint to ensure productstability and reliability；
9)Standard STO safe torque protection;
10)Standard configuration of common modules such as logic operations, arithmetic operations,comparatorstimers, etc.,to meet the development of common functions;
11）External 24V power supply optional card, which can be used for parameter setting and communicationdebugging without high-voltage power.
12)Support wide voltage range input
